    DTS5558 3 phase 4 wire 35mm standard din rail mount hour meter

    Ask Lasest Price
    Brand Name : GOMELONG
    Model Number : DTS5558
    Price : $24.00/Pieces 1-49 Pieces
    • Product Details
    • Company Profile

    DTS5558 3 phase 4 wire 35mm standard din rail mount hour meter

    MASS_APP4_1159_BEGIN

    DTS5558 3 phase 4 wire 35mm standard din rail mount hour meter

    MASS_APP4_1159_END

    Hot sales 3 phase wireless kwh meter with infrared rs485 modbus DTS5558 3 phase 4 wire 35mm standard din rail mount hour meterDTS5558 3 phase 4 wire 35mm standard din rail mount hour meterDTS5558 3 phase 4 wire 35mm standard din rail mount hour meterDTS5558 3 phase 4 wire 35mm standard din rail mount hour meterDTS5558 3 phase 4 wire 35mm standard din rail mount hour meterDTS5558 3 phase 4 wire 35mm standard din rail mount hour meter


    v

    SpecificationDTS5558-7P
    AccuracyActiveClass1.0Class1.0
    ReactiveOptionalOptional
    VoltageRated3x57.7/100V,3x220/380V3x57.7/100V,3x220/380V
    3x230/400V,3x240/415V3x230/400V,3x240/415V
    Range0.9Un~1.1Un0.9Un~1.1Un
    Limit0.8Un~1.2Un0.8Un~1.2Un
    Frequency50/60Hz50/60Hz
    CurrentRange3x1.5(6), 3x 5(30), 3x 10(50),3x1.5(6), 3x 5(30), 3x 10(50),
    3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A
    Starting Current0.4%Ib0.4%Ib
    ConstantActive1600imp/kWh1600imp/kWh
    Reactive

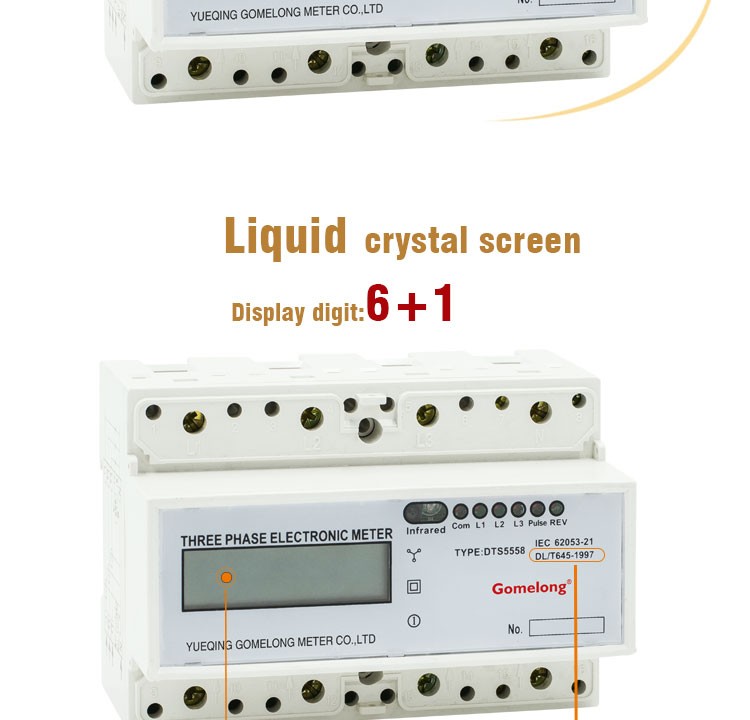

    DisplayTypeLCDRegister
    Digit6+16+1
    Power ConsumptionVoltage Circuit≤0.8W,10VA≤0.8W,10VA
    Current Circuit≤4VA≤4VA
    CommunicationInterfaceOptical/Infrared/RS485 (Optional)Optical/Infrared/RS485 (Optional)
    ProtocolMODBUS,DLT/645,IEC1107MODBUS,DLT/645,IEC1107
    TemperatureWorking Temperature-45℃~+55℃-45℃~+55℃
    Storage Temperature-40℃~+70℃-40℃~+70℃
    Humidity≤90%≤90%
    ProtectionIP54IP

    OPTIOANL FUNCTION IN DISPLAY : kWh, V, A, P, F, PF

    Communicate data collection via RS485 Modbus RTU protocol ( 1200~9600bps )


    What can we do for you?

    1) We can offer sample .

    2) Competitive Price( Factory direct price) .

    3) On time delivery.

    4) Good customers service.

    5) Professional Technology.

    6) Quality Control through the whole Manufacturing process.

    a. Check the material before the production.

    b. Have the random inspection during the production.

    c. Make the 100% inspection before the shipment.
