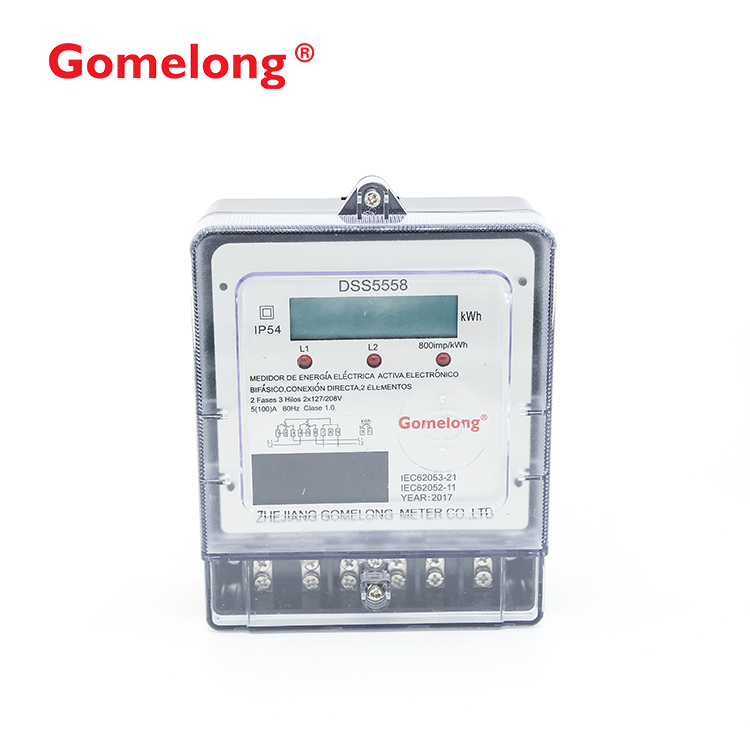

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter

    Ask Lasest Price
    Brand Name : GOMELONG
    Model Number : DSS5558
    Supply Ability : 1200 Set/Sets per Day
    Price : $10.00 - $12.00/Sets
    • Product Details
    • Company Profile

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter

    MASS_APP4_1159_BEGIN

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter

    MASS_APP4_1159_END

    Factory Wholesale Two Phase 3 Wire Electricity Digital Amp Volt Watt Meter

    Product Overviews

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meterDSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter

    Product Description

    Application

    DDS5558 LTwo-Phase watt-hour meter is utilized digital sampling technology and advanced SMT technology The meter has unbeatable accuracy and high reliability. It is designed and manufactured according to actual situations of resident usage of electricity. The two-phase voltage and current through the sampling circuit switched into signals and the signals into a two-phase energy

    measurement specific integrated chip. The specific IC put out pulse signals which are proportional to the measured two-phase power to drive the register, to achieve measuring two-phase energy. At the same time, the energy meter output power test pulse with isolated optical coupler.

    Features

    1. Bidirectional measurement

    2. Indication: Pulse, reverse current, phase failure

    Technical Parameters

    Specification

    DSS5558L

    DSS5558R

    Accuracy

    Active

    Class1.0

    Class1.0

    Reactive

    /

    /

    Voltage

    Rated

    2x57.7/100V,2x220/380V

    2x230/400V,2x240/415V

    2x57.7/100V,2x220/380V

    2x230/400V,2x240/415V

    Range

    0.9Un~1.1Un

    0.9Un~1.1Un

    Limit

    0.8Un~1.2Un

    0.8Un~1.2Un

    Frequency

    50/60Hz

    50/60Hz

    Current

    Range

    1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A

    1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A

    Starting Current

    0.4%Ib

    0.4%Ib

    Constant

    Active

    1600imp/kWh

    1600imp/kWh

    Reactive

    Display

    Type

    LCD

    Register

    Digit

    6+0

    6+0

    Power Consumption

    Voltage Circuit

    ≤0.8W,10VA

    ≤0.8W,10VA

    Current Circuit

    ≤4VA

    ≤4VA

    Communication

    Interface

    Optical/Infrared/RS485 (Optional)

    Optical/Infrared/RS485 (Optional)

    Protocol

    MODBUS,DLT/645,IEC1107

    MODBUS,DLT/645,IEC1107

    Temperature

    Working Temperature

    -45℃~+55℃

    -45℃~+55℃

    Storage Temperature

    -40℃~+70

    -40℃~+70

    Humidity

    ≤90%

    ≤90%

    Protection

    IP54

    IP54


    Dimension&Wiring Diagram

    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter


    DSS5558 Two Phase medidor digital bifasico Active Reactive electricity meter
