    DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA

    Ask Lasest Price
    Brand Name : GOMELONG
    Model Number : DDS5558
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $7.50/Pieces >=1 Pieces
    • Product Details
    • Company Profile

    DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA

    MASS_APP4_1159_BEGIN

    DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA

    MASS_APP4_1159_END

    DDS5558 200A Single Phase 3g Electronic ANSI Socket Meter

    Product Overviews

    DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA


    rDDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIAound hour meter

    Application

    Model DDS5558 single-phase ANSI meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC&ANSI standard.


    Features

    - Kwh/MD/V/A display, Back-up battery

    - Comply with ANSI C12.1/ ANSI C12.10/ANSI C12.18/ ANSI C12.19/ ANSI C12.20

    - Maximum demand measurement and resetting

    - Bidirectional measurement, Reverse energy calculated into forward

    - Current flow direction indication

    - LCD simulation disk


    Technical Parameters

    Specification

    DDS5558/1S

    DDS5558/2S

    Accuracy

    Active

    Class1.0

    Class1.0

    Voltage

    Rated

    120/240V

    120/240V

    Range

    0.9Un~1.1Un

    0.9Un~1.1Un

    Limit

    0.8Un~1.2Un

    0.8Un~1.2Un

    Frequency

    50/60Hz

    50/60Hz

    Current

    Range

    CL100,CL200

    CL100,CL200

    Starting Current

    0.4%Ib

    0.4%Ib

    Constant

    Active

    Kh1.0/Kh/1.6/Kh2.0

    Kh1.0/Kh/1.6/Kh2.0

    Form

    1S

    2S

    Display

    Type

    LCD

    LCD

    Digit

    5+0/5+1/6+1

    5+0/5+1/6+1

    Power Consumption

    Voltage Circuit

    1.5W

    1.5W

    Current Circuit

    2VA

    2VA

    Communication

    Interface

    Optical/Infrared/RS485 (Optional)

    Optical/Infrared/RS485 (Optional)

    Protocol

    MODBUS,DLT/645,IEC1107

    MODBUS,DLT/645,IEC1107

    Temperature

    Working Temperature

    -25℃~+55℃

    -25℃~+55℃

    Storage Temperature

    -40℃~+70

    -40℃~+70

    Humidity

    ≤95%

    ≤95%

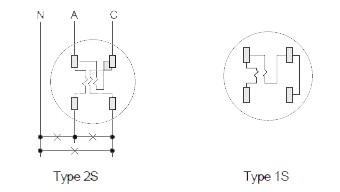

    Dimension&wiring Diagram

    DDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIADDS5558 DLS5558-1S/2S 100A/ 200A Single Phase Electronic ANSI Socket Meter / MEDIDOR DE ENERGIA
