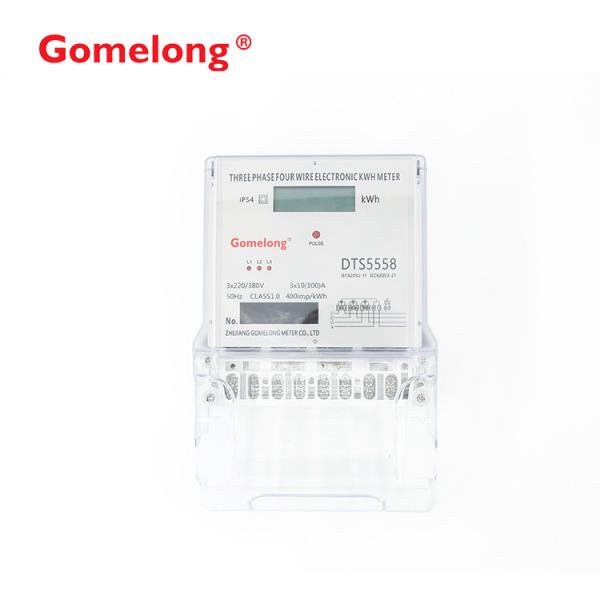

    Manufacture DTS5558 3 phase 4wire 60HZ electric energy meter price

    Ask Lasest Price
    Brand Name : GOMELONG
    Model Number : DSS5558
    Supply Ability : 100000 Piece/Pieces per Month Manufacture DTS5558 3 phase 4wire electric energy meter 60hz wit
    Price : $15.00 - $25.00/Pieces
    • Product Details
    • Company Profile

    Manufacture DTS5558 3 phase 4wire 60HZ electric energy meter price

    Product Overviews

    Product Overviews

    Manufacture DTS5558 3 phase 4wire 60HZ electric energy meter price


    Manufacture DTS5558 3 phase 4wire 60HZ electric energy meter price

    1. General

    DTS three phase electronict watt-hour meter adopts micro-electronic technology, it has high precision and low power consumption, the performance can complies with IEC IEC62052 IEC62053.

    It adopts large-scale integration (LSI) and surface mounting technology (SMT), the main components use international famous brand, so the meter has high reliability and long service life. The meter case uses fire-resistant ABS material, and the structure of the meter is air-proofed. Single-chip processing system in the module responsible for the data operation.


    2. Technical data

    Rated Voltage

    3×220/380V

    Reference frequency

    50Hz

    Basic Current (Maximum Current)A

    3×1.5(6)

    3×5(20) ,3×10(40) ,3×15(60) ,3×20(80),3×30(100)

    Applicable Standard

    IEC62052 IEC62053

    Service Lifetime

    10 years

    Accuracy Class

    Class1

    Working Temperature

    -25~+55

    Starting current

    Class 1=0.004Ib; Class 2=0.005Ib.

    Starting current(CT)

    Class 1=0.002In; Class 2=0.003In

    Working Voltage Range

    0.9~1.1Un

    Power consumption

    =2W,5VA

    Over voltage protection

    6kV

    Relative humidity

    =95%


    3.Outline drawing


    4. Diagram


    5. Installation

    The meter must be connected according to connection diagram curve in the meter. It is required to tighten the screws and well connect the conducting plate in the terminal block.


    6. Guarantee

    18 months in case that the meter is sealed and right operation.
